Cracking-Interview
  • Data Structures and Algorithms
  • Arrays
    • 1. Two Sums
    • 2. Rotate Array
    • 3.Remove Duplicates from sorted array
    • 4.Merge Two Sorted Array
    • 5.Majority Element
    • 6.Rotate Image
    • 7.Merge Intervals
    • 8.Increasing Triplet Subsequence
    • 9.Set Matrix Zeroes
    • 10.Product of Array Except Self
    • 11.Container With Most Water
    • 12.Next Permutation
    • 13.Next Greater Element III
    • 14.Largest Number
    • 15.Candy
    • 16.Shortest Unsorted Continuous Subarray
    • 17.Sort Colors(Sort array of 0, 1, 2)
    • 18.Queue Reconstruction by Height
    • 19.Task Scheduler
    • 20.Trapping Rain Water
    • 21.Search a 2D Matrix II
    • 22. Spiral Matrix
    • 23.Median of Two Sorted Arrays
    • 24.Count inversion of an array
    • 25. Reverse Pairs
    • 26. Count Servers that Communicate
    • 27. 3Sum
    • 28. 4Sum
    • 29. Game of Life
    • 30. Sort the Matrix Diagonally
    • 31. Push Dominoes
    • 32. Corporate Flight Bookings
    • 33. Rotating the Box
    • 34. Interval List Intersections
    • 35. Insert Interval
    • 36. Minimum Moves to Equal Array Elements II
    • 37. Pairs of Songs With Total Durations Divisible by 60
    • 38. Remove Covered Intervals
    • Juggling Algorithm
    • Moore’s Voting Algorithm
    • Two Pointer Method
  • Linked List
    • 1.Odd-Even Linked List
    • 2.Add Two Numbers
    • 3. Insert in a Sorted List
    • 4.Rotate List
    • 5.Palindrome Linked List
    • 6.Point of insertion between two Linked List
    • 7.Delete Node in a Linked List
    • 8.Middle of the Linked List
    • 9.Linked List Cycle
    • 10. Swapping Nodes in a Linked List
    • 11.Swap Nodes in Pairs
    • 12.Merge Two Sorted Lists
    • 13.Reverse a Linked List
    • 14. Reverse Linked List II
    • 15.Copy List with Random Pointer
    • 16.Remove Duplicates from Sorted List
    • 17. Merge k Sorted Lists
    • 18. Remove Nth Node From End of List
    • 19. Sort List
    • 20. Reverse Nodes in k-Group
    • 21. Partition List
    • 22. Flattening a Linked List
    • Basic Implementation of Singly Linked List
    • Basic Implementation of Doubly Linked List
  • Strings
    • 1.Reverse Words in a String
    • 2. Is Subsequence
    • 3.Valid Anagram
    • 4.Add Binary
    • 5.Longest Common Prefix
    • 7.Valid Palindrome
    • 8.Implement strStr()
    • 9.String to Integer (atoi)
    • 10.Count and Say
    • 11.Longest Substring Without Repeating Characters
    • 12. Longest Substring with At Most K Distinct Characters
    • 13. Longest Substring with At Least K Repeating Characters
    • 14. Find All Anagrams in a String
    • 15. Permutation in String
    • 16. Maximum Number of Vowels in a Substring of Given Length
    • 17. Partition Labels
    • 18. Minimum Window Substring
    • 19. Compare Version Numbers
    • 20. Shortest Distance to a Character
    • 21. Count Number of Homogenous Substrings
    • 22. Remove Duplicate Letters
    • 23. Count Sorted Vowel Strings
    • 24. Get Equal Substrings Within Budget
    • 25. Sentence Similarity III
    • 26. Shifting Letters
    • 27. Longest Happy Prefix (imp)
    • 28. Sort Characters By Frequency
    • 29. String Compression
    • 30. Palindrome Pairs
    • 31. Shortest Palindrome(Imp)
    • 32. One Edit Distance
    • 33. Can Make Palindrome from Substring
    • 34. Greatest Common Divisor of Strings
    • KMP Algorithm for Pattern Searching
    • Rabin-Karp Algorithm for Pattern Searching
  • Binary Tree
    • Terminology and Formula
    • N-ary Tree
      • 1. N-ary Tree Preorder Traversal
      • 2. N-ary Tree Postorder Traversal
      • 3. N-ary Tree Level Order Traversal
    • Tree Traversals
      • 1.In-order Traversal
      • 2.Pre-order Traversal
      • 3.Post-order Traversal
      • 4.Level-order Traversal
      • 5.Vertical Order Traversal
      • 6. Binary Tree Level Order Traversal II
    • Problems Related to Binary Trees
      • 1.Maximum/Minimum Depth of Binary Tree
      • 2.Lowest Common Ancestor of a Binary Tree
      • 3.Symmetric Tree
      • 4.Path Sum
      • 5.Tree : Top View
      • 6. Diameter of Binary Tree
      • 7.Populating Next Right Pointers in Each Node
      • 8.Balanced Binary Tree
      • 9.Binary Tree Zigzag Level Order Traversal
      • 10.Invert Binary Tree
      • 11.Binary Tree Right Side View
      • 12.Validate Binary Tree Nodes
      • 13.Merge Two Binary Trees
      • 14.Flatten Binary Tree to Linked List
      • 15. Construct Binary Tree from Preorder and Inorder Traversal
      • 16. Construct Binary Tree from Inorder and Postorder Traversal
      • 17. Binary Tree Maximum Path Sum
      • 18. Sum Root to Leaf Numbers
      • 19. Subtree of Another Tree
      • 20. Even Odd Tree
      • 21. Delete Nodes And Return Forest
      • 22. Maximum Binary Tree
      • 23. Linked List in Binary Tree
      • 24. Longest Univalue Path
      • 25. Sum of Distances in Tree
      • 26. Distribute Coins in Binary Tree
      • 27. Find Duplicate Subtrees
      • 28. Serialize and Deserialize BST
      • 29. Serialize and Deserialize Binary Tree
      • 30. Path Sum III
      • 31. Delete Leaves With a Given Value
      • 32. All Possible Full Binary Trees
      • 33. All Nodes Distance K in Binary Tree
      • 34. Maximum Width of Binary Tree
  • Stack and Queue
    • Problems
      • 1.Min Stack
      • 2. Max Stack
      • 3.Valid Parentheses
      • 4.Evaluate Reverse Polish Notation
      • 5.Infix And Prefix and Postfix Conversions
      • 6.Next Greater Element I
      • 7.Next Greater Element II
      • 8.Sliding Window Maximum
      • 9.Gas Station (Circular Tour Problem)
      • 10.Daily Temperatures
      • 11.Decode String
      • 12. Largest Rectangle in Histogram
      • 13. Maximal Rectangle
      • 14. Minimum Remove to Make Valid Parentheses
      • 15. Map of Highest Peak
      • 16. Longest Valid Parentheses
      • 17. Online Stock Span
      • 18. Score of Parentheses
      • 19. Remove K Digits(imp)
      • 20. Design a Stack With Increment Operation
      • 21. Final Prices With a Special Discount in a Shop
      • 22. Valid Parenthesis String
      • 23. Reveal Cards In Increasing Order
      • 24. Remove All Adjacent Duplicates In String
      • 25. Number of Visible People in a Queue
      • 26.Number following a pattern
    • Implementation
      • Implementation of Queue
      • Implementation of Stack
      • Implementation of Circular Queue
      • Implement Queue using Stacks
      • Implement Stack using Queues
  • Hash Table
    • Designing and Definitions
      • Techniques of hashing and collision resolution
      • Design HashSet
      • Design HashMap
    • Problems
      • 1.Intersection of Two Arrays
      • 2.Happy Number
      • 3.Contains Duplicate
      • 4.Find the Duplicate Number
      • 5. Find All Duplicates in an Array
      • 6. Isomorphic Strings
      • 7. Group Anagrams
      • 8. Single Number
      • 9.Valid Sudoku
      • 10.Jewels and Stones
      • 11.First Missing Positive
      • 12. LRU Cache (V.IMP)
      • 13. Encode and Decode TinyURL
      • 14. Alphabet Board Path
  • Binary Search
    • Template I
      • Basic Binary Search
      • 1.Search in a Sorted Rotated Array
      • 5.Sqrt(x)
    • Template II
      • 2.Find Minimum in Rotated Sorted Array
    • Template III
      • 3.Find Peak Element
      • 4. Find First and Last Position of Element in Sorted Array
  • Binary Search Tree
    • 1.Is This a Binary Search Tree
    • 2.Search in a Binary Search Tree
    • 3.Insert into a Binary Search Tree
    • 4.Delete Node in a BST
    • 5.Lowest Common Ancestor of a Binary Search Tree
    • 6.Construct Binary Search Tree from Preorder Traversal
    • 7.Convert Sorted Array to Binary Search Tree
    • 8. Convert Sorted List to Binary Search Tree
    • 9.Kth Smallest Element in a BST
    • 10.Trim a Binary Search Tree
    • 11.Two Sum IV - Input is a BST
    • 12. Binary Search Tree to Greater Sum Tree / Greater Tree
    • 13. Balance a Binary Search Tree
    • 14. Binary Search Tree Iterator
    • 15. Unique Binary Search Trees
    • 16. Unique Binary Search Trees II
    • 17. Inorder Successor in BST
  • Bit manipulation
    • Bitwise Operations
    • 1.Reverse Bits
    • 2.Counting Bits
    • 3.Number of 1 Bits
    • 4.Hamming Distance
    • 5. Power of Two
    • 6. Complement of Base 10 Integer
  • Graph
    • 1.Maximum number of edges to be removed to contain exactly K connected components in the Graph
    • 2. Social Networking Graph
    • 3.The Flight Plan
    • 4.Is it a tree?
    • 5.Possible Bipartition
    • 6.Longest path in an undirected tree
    • 7.Keys and Rooms
    • 8.Is Graph Bipartite?
    • 9.Number of Islands
    • 10. Number of Provinces
    • 11.Surrounded Regions
    • 12. All Paths From Source to Target
    • 13.Word Ladder
    • 14.Rotting Oranges
    • 15.Course Schedule
    • 16.Course Schedule II
    • 17. Minimum Number of Vertices to Reach All Nodes
    • 18.Network Delay Time
    • 19. 01 Matrix
    • 20. Cheapest Flights Within K Stops
    • 21. Critical Connections in a Network
    • 22.Word Search
    • 23. Minimum Time to Collect All Apples in a Tree
    • 24. Time Needed to Inform All Employees
    • 25. As Far from Land as Possible
    • 26. Clone Graph
    • 27. Min Cost to Connect All Points
    • 28. Find the City With the Smallest Number of Neighbors at a Threshold Distance
    • 29. Number of Operations to Make Network Connected
    • 30. Open the Lock
    • 31. Word Search II
    • 32. Number of Ways to Arrive at Destination
    • 33. Knight On Chess Board
    • 34. Shortest Bridge
    • 35. Pacific Atlantic Water Flow
    • 36. Making A Large Island
    • 37. Path with Maximum Probability
    • Graph Algorithms
      • 1.DFS
      • 2.BFS
      • 3.Prim's MST
      • 4.Kruskal (MST)
      • 5.Dijkstra’s Algorithm(Single Source Shortest Path)
      • 6. Floyd Warshall's Algorithm(All Pair Sortest Path)
      • 7. Topological Sort
      • 8. Find if the given edge is a bridge in graph.
  • Disjoint Sets(Union-Find)
    • 1.Implementation of union find
    • 2.Social Network Community
    • 3. Graph Connectivity With Threshold
    • 4. Redundant Connection
    • 5. Smallest String With Swaps
    • 6. Accounts Merge
  • Heap and Priority Queue
    • Concepts of Heap
      • Building Max Heap
    • 1.Kth Largest Element in an Array
    • 2.Kth Largest Element in a Stream
    • 3.Top K Frequent Elements
    • 4.Kth Smallest Element in a Sorted Matrix
    • 5. Find Kth Largest XOR Coordinate Value
    • 6. Top K Frequent Words
    • 7. Find Median from Data Stream
    • 8. Maximum Average Pass Ratio
    • 9. Longest Happy String
    • 10. K Closest Points to Origin
    • 11. Reorganize String
    • 12. Find the Kth Largest Integer in the Array
    • 13. Smallest range in K lists
  • Trie
    • 1. Implement Trie (Prefix Tree)
    • 2. Replace Words
    • 3.Design Add and Search Words Data Structure
    • 4. Search Suggestions System
  • Dynamic Programming
    • 1.House Robber
    • 2.Climbing Stairs
    • 3.Longest Palindromic Substring
    • 4.Longest Palindromic Subsequence
    • 5.Best Time to Buy and Sell Stock
    • 6.Best Time to Buy and Sell Stock with Cooldown
    • 7.Unique Paths
    • 8.Minimum Path Sum
    • 9.Longest Increasing Subsequence
    • 10.Longest Common Subsequence
    • 11.Longest Consecutive Sequence
    • 12.Coin Change
    • 13.Coin Change 2
    • 14.Target Sum
    • 15.Partition Equal Subset Sum
    • 16. Last Stone Weight II
    • 17.Word Break
    • 18. Word Break II
    • 19.Burst Balloons
    • 20. Uncrossed Lines
    • 21. Wildcard Matching
    • 22. Maximal Square
    • 23. Perfect Squares
    • 24. Decode Ways
    • 25. Minimum Cost For Tickets
    • 26. Number of Dice Rolls With Target Sum
    • 27. Delete Operation for Two Strings
    • 28. Maximum Length of Repeated Subarray
    • 29. Longest String Chain
    • 30. Maximum Length of Pair Chain
    • 31. Minimum Falling Path Sum
    • 32. Predict the Winner
    • 33. Delete and Earn
    • 34. House Robber III
    • 35. Partition to K Equal Sum Subsets
    • 36. Different Ways to Add Parentheses
    • 37. Count Square Submatrices with All Ones
    • 38. 2 Keys Keyboard
    • 39. Palindrome Partitioning II
    • 40. Integer Break
    • 41.Cutting a Rod
    • 42. Number of Longest Increasing Subsequence
    • 43. Russian Doll Envelopes
    • 44. 0-1 Knapsack
    • 45. Interleaving String
    • 46. Edit Distance
    • 47. Minimum Insertion Steps to Make a String Palindrome
    • 48.Jump Game
    • 49. Shortest Common Supersequence
    • 50. Length of Longest Fibonacci Subsequence
    • 51. Maximum Alternating Subsequence Sum
    • 52. Palindromic Substrings
    • 53. Distinct Subsequences
    • 54. Best Team With No Conflicts
    • 55. Partition Array for Maximum Sum
    • 56. Ones and Zeroes
  • Greedy Algorithms
    • 1.Activity Selection
    • 2. N meetings in one room
    • 3.Minimum Platforms
    • 4. Car Pooling
    • 5. Maximum Population Year
    • 6.Meeting Rooms
    • 7. Equal Sum Arrays With Minimum Number of Operations
    • 8. Two City Scheduling
    • 9. Non-overlapping Intervals
    • 10. Minimum Number of Arrows to Burst Balloons
    • 11. Maximum Profit in Job Scheduling{IMP}
    • 12.Huffman Coding
    • 13. Minimum Cost Tree From Leaf Values
    • 14.Maximum Number of Events That Can Be Attended
    • 15. Video Stitching
    • 16. Minimum Number of Taps to Open to Water a Garden
  • Backtracking
    • 1.Subsets and Subset II
    • 2.Combinations
    • 3.Generate Parentheses
    • 4.Letter Combinations of a Phone Number
    • 5.Palindrome Partitioning
    • 6.Combination Sum and Combination Sum II
    • 7.Permutations
    • 8. Permutations II
    • 9. Letter Case Permutation
    • 10. Split a String Into the Max Number of Unique Substrings
    • 11. Path with Maximum Gold
    • 12. N-Queens
    • 13. N-Queens II
    • 14. Sudoku Solver
    • 15. Permutation Sequence
    • 16. Beautiful Arrangement
  • Sub Array and Sliding Window Problems
    • 1.Maximum Subarray Sum
    • 2.Maximum Product Subarray
    • 3.Maximum Sum Circular Subarray
    • 4. Maximum Absolute Sum of Any Subarray
    • 5. K-Concatenation Maximum Sum
    • 6.Subarray Sum Equals K
    • 7. Continuous Subarray Sum
    • 8. Contiguous Array
    • 9.Minimum Size Subarray Sum >=k (positive no)
    • 10. Max Subarray sum of positive no <= k
    • 11. Maximum Number of Non-Overlapping Subarrays With Sum Equals Target
    • 12. Maximum Subarray Sum with One Deletion
    • 13. Shortest Subarray with Sum at Least K (Negative Numbers)
    • 14. Frequency of the Most Frequent Element
    • 15. Count Number of Nice Subarrays
    • 16. Binary Subarrays With Sum
    • 17.Number of Substrings Containing All Three Characters
    • 18. Find Two Non-overlapping Sub-arrays Each With Target Sum
    • 19. Maximum Points You Can Obtain from Cards
    • 20. Longest Repeating Character Replacement
    • 21. Subarrays with K Different Integers
    • 22. Replace the Substring for Balanced String
    • 23. Maximize the Confusion of an Exam / Max Consecutive Ones III
    • 24. Subarray Sums Divisible by K
  • Design
    • 1. Design Twitter
    • 2. Design Browser History
    • 3. Snapshot Array
  • Maths
    • Formula
    • 1.Count Prime
    • 2.Pascal's Triangle
    • 3.Extra Long Factorials
    • 4.Factorial Trailing Zeroes
    • 5.Excel Sheet Column Number
    • 6.HCF and LCM
    • 7. Fizz Buzz
    • 8. Rearrange an array so that arr[i] becomes arr[arr[i]]
    • 9. XOR Queries of a Subarray
    • 10. Find second largest element
  • Sorting-Algorithms
    • Merge Sort
    • Quick Sort
    • Heap Sort
    • Selection Sort
    • Bubble Sort
    • Insertion Sort
  • Expected Interview MCQ and Questions c++
  • Concepts in C++
  • System Design Questions
  • 💾DBMS
    • Introduction
    • RBMS
    • JOINS
    • SQL
  • 🖥️OS
    • OS and Its Types
    • Process Concept and Threads
    • Process Synchronization
    • Deadlock in Operating System
    • Memory Management
    • Imp Questions of OS for Interviews
  • 🚙OOPS
    • Introduction and Definitions
  • 📨COMPUTER-NETWORKS
    • OSI | TCP IP Model
    • Topology
    • Network Devices
    • IP Address
Powered by GitBook
On this page
  • The 7 Layers of the OSI Model
  • Physical layer
  • Data-Link Layer
  • Network Layer
  • Transport Layer
  • Session Layer
  • Presentation Layer
  • Application Layer
  • TCP/IP model
  • Network Layer
  • Internet Layer
  • Transport Layer
  • Application Layer

Was this helpful?

  1. COMPUTER-NETWORKS

OSI | TCP IP Model

PreviousIntroduction and DefinitionsNextTopology

Last updated 3 years ago

Was this helpful?

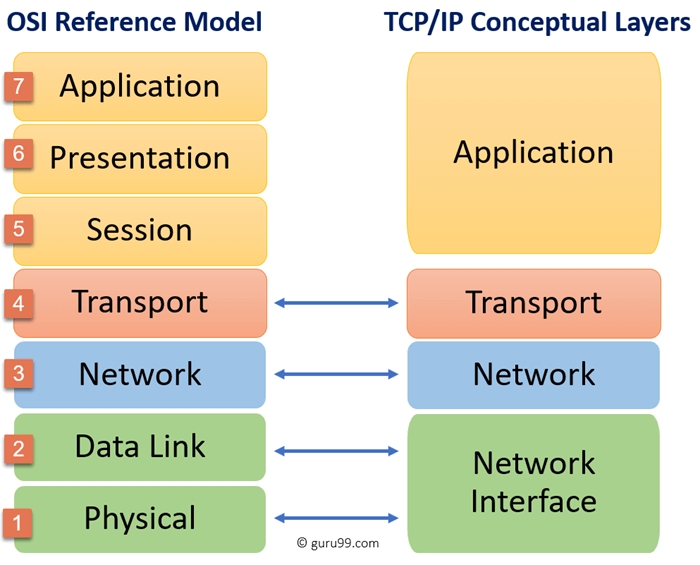

The 7 Layers of the OSI Model

  1. Physical Layer

  2. Data-Link Layer

  3. Network Layer

  4. Transport Layer

  5. Session Layer

  6. Presentation Layer

  7. Application Layer

Physical layer

  • The main functionality of the physical layer is to transmit the individual bits from one node to another node.

Functions of a Physical layer:

  • Line Configuration: It defines the way how two or more devices can be connected physically.

  • Data Transmission: It defines the transmission mode whether it is simplex, half-duplex or full-duplex mode between the two devices on the network.

  • Topology: It defines the way how network devices are arranged.

  • Signals: It determines the type of the signal used for transmitting the information.

Data-Link Layer

  • This layer is responsible for the error-free transfer of data frames.

  • It defines the format of the data on the network.

  • It provides a reliable and efficient communication between two or more devices.

  • It is mainly responsible for the unique identification of each device that resides on a local network.

  • It contains two sub-layers:

    • Logical Link Control Layer

      • It is responsible for transferring the packets to the Network layer of the receiver that is receiving.

      • It identifies the address of the network layer protocol from the header.

      • It also provides flow control.

    • Media Access Control Layer

      • A Media access control layer is a link between the Logical Link Control layer and the network's physical layer.

      • It is used for transferring the packets over the network.

Functions of the Data-link layer

  • Framing: The data link layer translates the physical's raw bit stream into packets known as Frames. The Data link layer adds the header and trailer to the frame. The header which is added to the frame contains the hardware destination and source address.

  • Physical Addressing: The Data link layer adds a header to the frame that contains a destination address. The frame is transmitted to the destination address mentioned in the header.

  • Flow Control: Flow control is the main functionality of the Data-link layer. It is the technique through which the constant data rate is maintained on both the sides so that no data get corrupted. It ensures that the transmitting station such as a server with higher processing speed does not exceed the receiving station, with lower processing speed.

  • Error Control: Error control is achieved by adding a calculated value CRC (Cyclic Redundancy Check) that is placed to the Data link layer's trailer which is added to the message frame before it is sent to the physical layer. If any error seems to occur, then the receiver sends the acknowledgment for the retransmission of the corrupted frames.

  • Access Control: When two or more devices are connected to the same communication channel, then the data link layer protocols are used to determine which device has control over the link at a given time.

Network Layer

  • It is a layer 3 that manages device addressing, tracks the location of devices on the network.

  • It determines the best path to move data from source to the destination based on the network conditions, the priority of service, and other factors.

  • The Data link layer is responsible for routing and forwarding the packets.

  • Routers are the layer 3 devices, they are specified in this layer and used to provide the routing services within an internetwork.

  • The protocols used to route the network traffic are known as Network layer protocols. Examples of protocols are IP and Ipv6.

Functions of Network Layer:

  • Internetworking: An internetworking is the main responsibility of the network layer. It provides a logical connection between different devices.

  • Addressing: A Network layer adds the source and destination address to the header of the frame. Addressing is used to identify the device on the internet.

  • Routing: Routing is the major component of the network layer, and it determines the best optimal path out of the multiple paths from source to the destination.

  • Packetizing: A Network Layer receives the packets from the upper layer and converts them into packets. This process is known as Packetizing. It is achieved by internet protocol (IP).

Transport Layer

  • The Transport layer is a Layer 4 ensures that messages are transmitted in the order in which they are sent and there is no duplication of data.

  • The main responsibility of the transport layer is to transfer the data completely.

  • It receives the data from the upper layer and converts them into smaller units known as segments.

  • This layer can be termed as an end-to-end layer as it provides a point-to-point connection between source and destination to deliver the data reliably.

The two protocols used in this layer are:

  • Transmission Control Protocol

    • It is a standard protocol that allows the systems to communicate over the internet.

    • It establishes and maintains a connection between hosts.

    • When data is sent over the TCP connection, then the TCP protocol divides the data into smaller units known as segments. Each segment travels over the internet using multiple routes, and they arrive in different orders at the destination. The transmission control protocol reorders the packets in the correct order at the receiving end.

  • User Datagram Protocol

    • User Datagram Protocol is a transport layer protocol.

    • It is an unreliable transport protocol as in this case receiver does not send any acknowledgment when the packet is received, the sender does not wait for any acknowledgment. Therefore, this makes a protocol unreliable.

Functions of Transport Layer:

  • Service-point addressing: Computers run several programs simultaneously due to this reason, the transmission of data from source to the destination not only from one computer to another computer but also from one process to another process. The transport layer adds the header that contains the address known as a service-point address or port address. The responsibility of the network layer is to transmit the data from one computer to another computer and the responsibility of the transport layer is to transmit the message to the correct process.

  • Segmentation and reassembly: When the transport layer receives the message from the upper layer, it divides the message into multiple segments, and each segment is assigned with a sequence number that uniquely identifies each segment. When the message has arrived at the destination, then the transport layer reassembles the message based on their sequence numbers.

  • Connection control: Transport layer provides two services Connection-oriented service and connectionless service. A connectionless service treats each segment as an individual packet, and they all travel in different routes to reach the destination. A connection-oriented service makes a connection with the transport layer at the destination machine before delivering the packets. In connection-oriented service, all the packets travel in the single route.

  • Flow control: The transport layer also responsible for flow control but it is performed end-to-end rather than across a single link.

  • Error control: The transport layer is also responsible for Error control. Error control is performed end-to-end rather than across the single link. The sender transport layer ensures that message reach at the destination without any error.

Session Layer

  • It is a layer 3 in the OSI model.

  • The Session layer is used to establish, maintain and synchronizes the interaction between communicating devices.

Functions of Session layer:

  • Dialog control: Session layer acts as a dialog controller that creates a dialog between two processes or we can say that it allows the communication between two processes which can be either half-duplex or full-duplex.

  • Synchronization: Session layer adds some checkpoints when transmitting the data in a sequence. If some error occurs in the middle of the transmission of data, then the transmission will take place again from the checkpoint. This process is known as Synchronization and recovery.

Presentation Layer

  • A Presentation layer is mainly concerned with the syntax and semantics of the information exchanged between the two systems.

  • It acts as a data translator for a network.

  • This layer is a part of the operating system that converts the data from one presentation format to another format.

  • The Presentation layer is also known as the syntax layer.

Functions of Presentation layer:

  • Translation: The processes in two systems exchange the information in the form of character strings, numbers and so on. Different computers use different encoding methods, the presentation layer handles the interoperability between the different encoding methods. It converts the data from sender-dependent format into a common format and changes the common format into receiver-dependent format at the receiving end.

  • Encryption: Encryption is needed to maintain privacy. Encryption is a process of converting the sender-transmitted information into another form and sends the resulting message over the network.

  • Compression: Data compression is a process of compressing the data, i.e., it reduces the number of bits to be transmitted. Data compression is very important in multimedia such as text, audio, video.

Application Layer

  • An application layer serves as a window for users and application processes to access network service.

  • It handles issues such as network transparency, resource allocation, etc.

  • An application layer is not an application, but it performs the application layer functions.

  • This layer provides the network services to the end-users.

Functions of Application layer:

  • File transfer, access, and management (FTAM): An application layer allows a user to access the files in a remote computer, to retrieve the files from a computer and to manage the files in a remote computer.

  • Mail services: An application layer provides the facility for email forwarding and storage.

  • Directory services: An application provides the distributed database sources and is used to provide that global information about various objects.

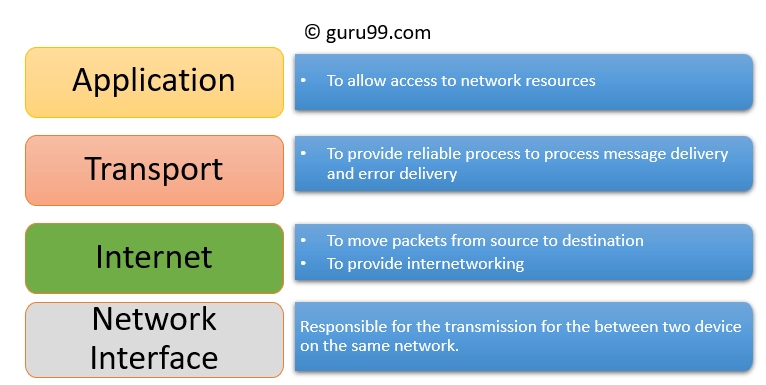

TCP/IP model

Four Layers of TCP/IP model

  • Application Layer

  • Transport Layer

  • Internet Layer

  • Network Layer

Network Layer

  • A network layer is the lowest layer of the TCP/IP model.

  • A network layer is the combination of the Physical layer and Data Link layer defined in the OSI reference model.

  • It defines how the data should be sent physically through the network.

  • This layer is mainly responsible for the transmission of the data between two devices on the same network.

  • The functions carried out by this layer are encapsulating the IP datagram into frames transmitted by the network and mapping of IP addresses into physical addresses.

  • The protocols used by this layer are ethernet, token ring, FDDI, X.25, frame relay.

Internet Layer

  • An internet layer is the second layer of the TCP/IP model.

  • An internet layer is also known as the network layer.

  • The main responsibility of the internet layer is to send the packets from any network, and they arrive at the destination irrespective of the route they take.

Following are the protocols used in this layer are:

IP Protocol: IP protocol is used in this layer, and it is the most significant part of the entire TCP/IP suite.

Following are the responsibilities of this protocol:

  • IP Addressing: This protocol implements logical host addresses known as IP addresses. The IP addresses are used by the internet and higher layers to identify the device and to provide internetwork routing.

  • Host-to-host communication: It determines the path through which the data is to be transmitted.

  • Data Encapsulation and Formatting: An IP protocol accepts the data from the transport layer protocol. An IP protocol ensures that the data is sent and received securely, it encapsulates the data into message known as IP datagram.

  • Fragmentation and Reassembly: The limit imposed on the size of the IP datagram by data link layer protocol is known as Maximum Transmission unit (MTU). If the size of IP datagram is greater than the MTU unit, then the IP protocol splits the datagram into smaller units so that they can travel over the local network. Fragmentation can be done by the sender or intermediate router. At the receiver side, all the fragments are reassembled to form an original message.

  • Routing: When IP datagram is sent over the same local network such as LAN, MAN, WAN, it is known as direct delivery. When source and destination are on the distant network, then the IP datagram is sent indirectly. This can be accomplished by routing the IP datagram through various devices such as routers.

ARP Protocol

  • ARP stands for Address Resolution Protocol.

  • ARP is a network layer protocol which is used to find the physical address from the IP address.

  • The two terms are mainly associated with the ARP Protocol:

    • ARP request: When a sender wants to know the physical address of the device, it broadcasts the ARP request to the network.

    • ARP reply: Every device attached to the network will accept the ARP request and process the request, but only recipient recognize the IP address and sends back its physical address in the form of ARP reply. The recipient adds the physical address both to its cache memory and to the datagram header

ICMP Protocol

  • ICMP stands for Internet Control Message Protocol.

  • It is a mechanism used by the hosts or routers to send notifications regarding datagram problems back to the sender.

  • A datagram travels from router-to-router until it reaches its destination. If a router is unable to route the data because of some unusual conditions such as disabled links, a device is on fire or network congestion, then the ICMP protocol is used to inform the sender that the datagram is undeliverable.

  • An ICMP protocol mainly uses two terms:

    • ICMP Test: ICMP Test is used to test whether the destination is reachable or not.

    • ICMP Reply: ICMP Reply is used to check whether the destination device is responding or not.

  • The core responsibility of the ICMP protocol is to report the problems, not correct them. The responsibility of the correction lies with the sender.

  • ICMP can send the messages only to the source, but not to the intermediate routers because the IP datagram carries the addresses of the source and destination but not of the router that it is passed to.

Transport Layer

The transport layer is responsible for the reliability, flow control, and correction of data which is being sent over the network.

The two protocols used in the transport layer are User Datagram protocol and Transmission control protocol.

  • User Datagram Protocol (UDP)

    • It provides connectionless service and end-to-end delivery of transmission.

    • It is an unreliable protocol as it discovers the errors but not specify the error.

    • User Datagram Protocol discovers the error, and ICMP protocol reports the error to the sender that user datagram has been damaged.

    • UDP consists of the following fields: Source port address: The source port address is the address of the application program that has created the message. Destination port address: The destination port address is the address of the application program that receives the message. Total length: It defines the total number of bytes of the user datagram in bytes. Checksum: The checksum is a 16-bit field used in error detection.

    • UDP does not specify which packet is lost. UDP contains only checksum; it does not contain any ID of a data segment.

  • Transmission Control Protocol (TCP)

    • It provides a full transport layer services to applications.

    • It creates a virtual circuit between the sender and receiver, and it is active for the duration of the transmission.

    • TCP is a reliable protocol as it detects the error and retransmits the damaged frames. Therefore, it ensures all the segments must be received and acknowledged before the transmission is considered to be completed and a virtual circuit is discarded.

    • At the sending end, TCP divides the whole message into smaller units known as segment, and each segment contains a sequence number which is required for reordering the frames to form an original message.

    • At the receiving end, TCP collects all the segments and reorders them based on sequence numbers.Difference between OSI and TCP/IP model

Application Layer

  • An application layer is the topmost layer in the TCP/IP model.

  • It is responsible for handling high-level protocols, issues of representation.

  • This layer allows the user to interact with the application.

  • When one application layer protocol wants to communicate with another application layer, it forwards its data to the transport layer.

  • There is an ambiguity occurs in the application layer. Every application cannot be placed inside the application layer except those who interact with the communication system. For example: text editor cannot be considered in application layer while web browser using HTTP protocol to interact with the network where HTTP protocol is an application layer protocol.

Following are the main protocols used in the application layer:

  • HTTP: HTTP stands for Hypertext transfer protocol. This protocol allows us to access the data over the world wide web. It transfers the data in the form of plain text, audio, video. It is known as a Hypertext transfer protocol as it has the efficiency to use in a hypertext environment where there are rapid jumps from one document to another.

  • SNMP: SNMP stands for Simple Network Management Protocol. It is a framework used for managing the devices on the internet by using the TCP/IP protocol suite.

  • SMTP: SMTP stands for Simple mail transfer protocol. The TCP/IP protocol that supports the e-mail is known as a Simple mail transfer protocol. This protocol is used to send the data to another e-mail address.

  • DNS: DNS stands for Domain Name System. An IP address is used to identify the connection of a host to the internet uniquely. But, people prefer to use the names instead of addresses. Therefore, the system that maps the name to the address is known as Domain Name System.

  • TELNET: It is an abbreviation for Terminal Network. It establishes the connection between the local computer and remote computer in such a way that the local terminal appears to be a terminal at the remote system.

  • FTP: FTP stands for File Transfer Protocol. FTP is a standard internet protocol used for transmitting the files from one computer to another computer.

📨
